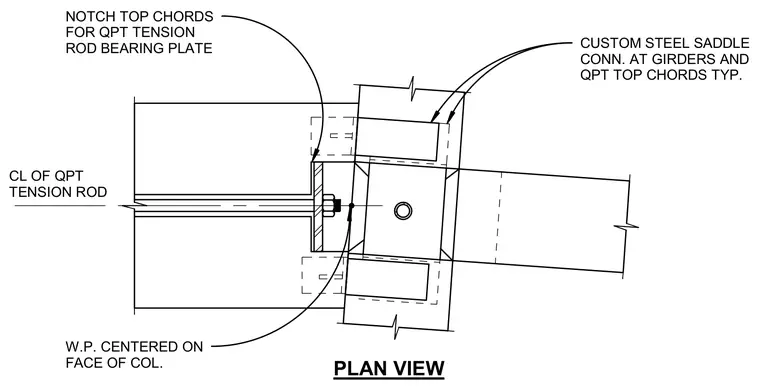

A custom steel saddle connection ties the girders and QPT top chords together at the column face with the work point centered on the column face. The top chords are notched to accommodate the QPT tension rod bearing plate. A centerline aligns with the QPT tension rod intersecting the bearing plate assembly.
CUSTOM STEEL SADDLE CONN. AT GIRDERS AND QPT TOP CHORDS TYP. W.P. CENTERED ON FACE OF COL. CL OF QPT TENSION ROD NOTCH TOP CHORDS FOR QPT TENSION ROD BEARING PLATE PLAN VIEW
