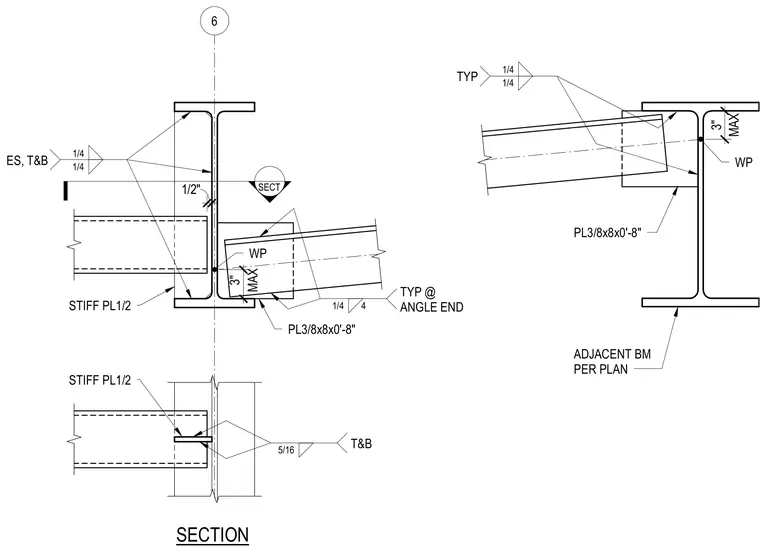

A beam framing connection to a supporting column utilizes a sloped angle end with a plate measuring 3/8 inch by 8 inches by 0 feet 8 inches. One-half inch thick stiffener plates are welded to the web with 1/4-inch fillet welds top and bottom. A 5/16-inch fillet weld secures the connection top and bottom near the work point. The adjacent beam is sized per plan with a maximum 3-inch clearance.
SECT 6 SECTION T&B 5/16 1/2" ES, T&B 1/4 1/4 STIFF PL1/2 PL3/8x8x0'-8" PL3/8x8x0'-8" TYP 1/4 1/4 ADJACENT BM PER PLAN STIFF PL1/2 MAX 3" WP WP MAX 3" TYP @ ANGLE END 4 1/4
