Adjacent concrete tilt-up wall panels are joined using embedded angles tied into the concrete panels and bridged by a three-eighths-inch by four-inch by eight-inch steel weld plate. A quarter-inch fillet weld on three sides secures the plate to the embed angles typically. A forty-five-day curing and waiting period is required between panel erection and final field welding of the panels together. The architectural panel joint is coordinated per the architectural drawings.

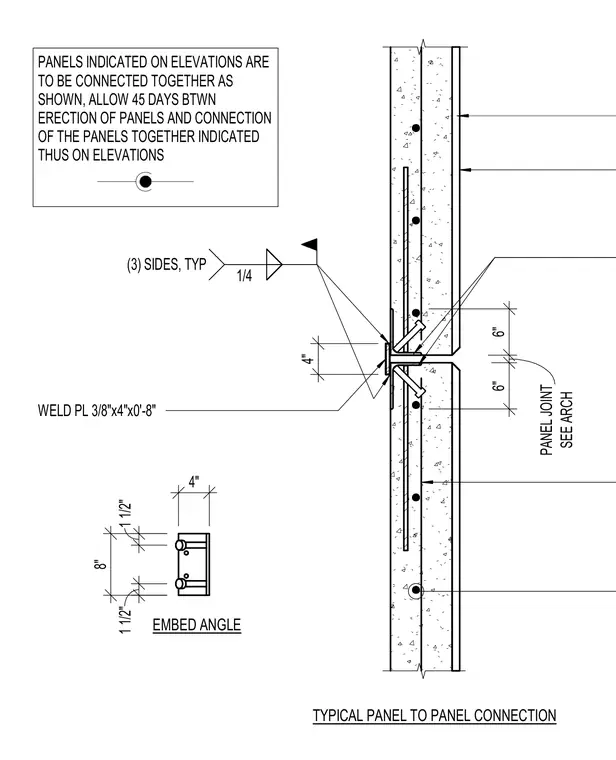

EMBED ANGLE PANELS INDICATED ON ELEVATIONS ARE TO BE CONNECTED TOGETHER AS SHOWN, ALLOW 45 DAYS BTWN ERECTION OF PANELS AND CONNECTION OF THE PANELS TOGETHER INDICATED THUS ON ELEVATIONS WELD PL 3/8"x4"x0'-8" 6" SEE ARCH PANEL JOINT 6" 4" 8" 4" 1 1/2" 1 1/2" 1/4 (3) SIDES, TYP TYPICAL PANEL TO PANEL CONNECTION
