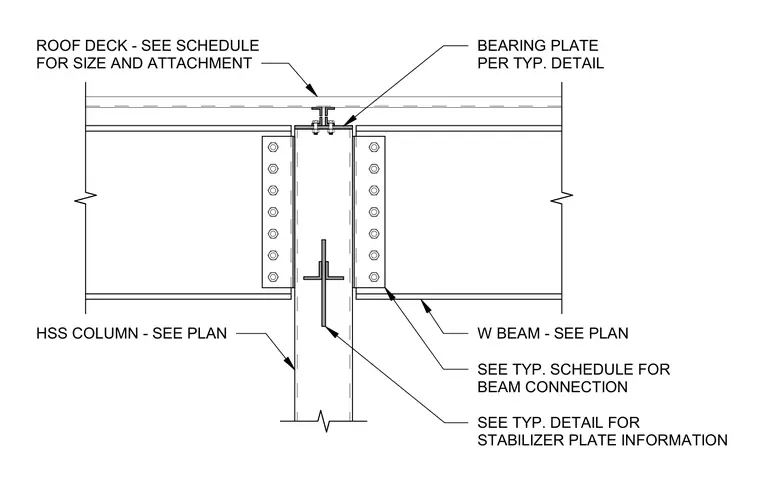

Wide flange beams attach to opposite sides of a hollow structural section column using bolted shear connections sized per the typical schedule. A roof deck bears across the top of the assembly with a bearing plate resting on the column cap. An internal stabilizer plate provides web reinforcement within the hollow structural section column profile. Additional beam connection and roof deck attachment details are referenced per structural schedules and typical details.
HSS COLUMN - SEE PLAN ROOF DECK - SEE SCHEDULE FOR SIZE AND ATTACHMENT W BEAM - SEE PLAN SEE TYP. SCHEDULE FOR BEAM CONNECTION SEE TYP. DETAIL FOR STABILIZER PLATE INFORMATION BEARING PLATE PER TYP. DETAIL
