Structural · S-36CR3

Steel Beam to Girder Connection with Flange Filler and Stiffener Plates

Materials

Steel

Elements

Beams Connections / Plates

Connections

Welded Connection

About this detail

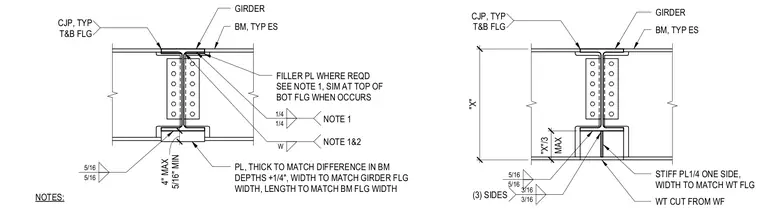

The steel beam connects to the supporting girder using complete joint penetration welds at the top and bottom flanges, supplemented by bolted web connections. A filler plate sized to match the difference in beam depths plus one-quarter inch is provided at the bottom flange where required, with a width matching the girder flange and length matching the beam flange. A WT section cut from a wide flange beam serves as a stiffener plate on one side, welded on three sides with fillet welds. Fillet welds of one-quarter inch, five-sixteenths inch, and three-sixteenths inch are specified according to the accompanying notes.
