A thickened concrete slab-on-grade footing supports stair framing where required, with the stringer attachment provided by the stair supplier. The footing is reinforced with two continuous number five bars and transverse number five bars spaced at twelve inches on center. The thickened concrete footing extends twelve inches beyond each stair stringer.

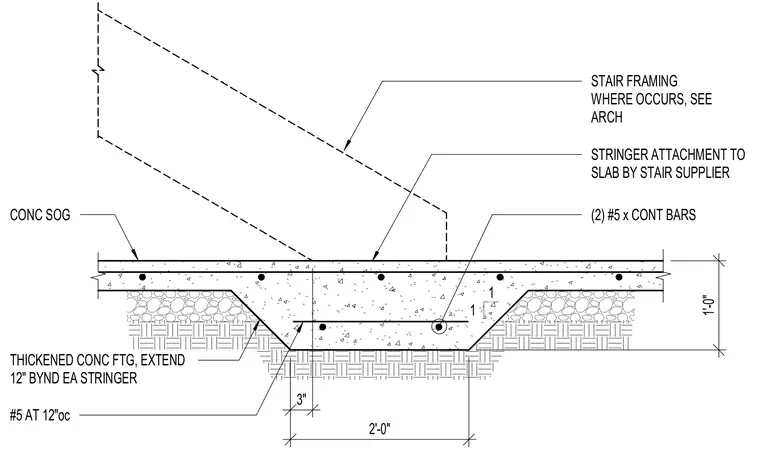

STAIR FRAMING WHERE OCCURS, SEE ARCH CONC SOG #5 AT 12"oc 1 1 (2) #5 x CONT BARS THICKENED CONC FTG, EXTEND 12" BYND EA STRINGER 3" 1'-0" 2'-0" STRINGER ATTACHMENT TO SLAB BY STAIR SUPPLIER
