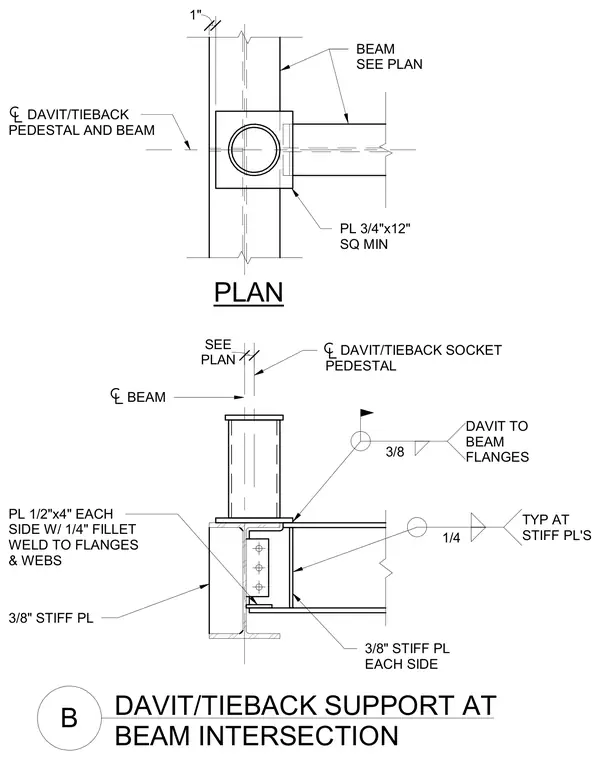

A structural steel davit and tieback socket pedestal is mounted to a beam intersection with three-quarter-inch square minimum base plates measuring twelve inches. Three-eighth-inch stiffener plates are welded to each side of the beam with quarter-inch typical fillet welds. Additional half-inch by four-inch plates are attached to each side with quarter-inch fillet welds to the flanges and webs. A three-eighth-inch fillet weld secures the davit to the beam flanges.
DAVIT/TIEBACK SUPPORT AT BEAM INTERSECTION B PLAN 3/8" STIFF PL PL 1/2"x4" EACH SIDE W/ 1/4" FILLET WELD TO FLANGES & WEBS BEAM 3/8" STIFF PL EACH SIDE DAVIT/TIEBACK SOCKET PEDESTAL PL 3/4"x12" SQ MIN DAVIT/TIEBACK PEDESTAL AND BEAM BEAM SEE PLAN PLAN SEE 3/8 DAVIT TO BEAM FLANGES 1/4 TYP AT STIFF PL'S 1"
