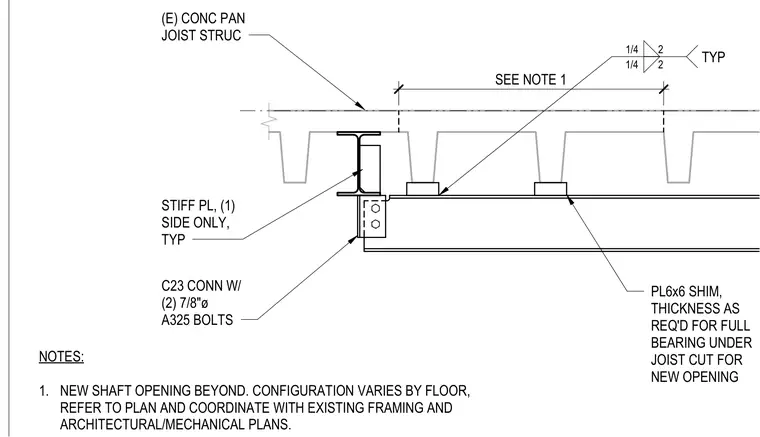

An existing concrete pan joist structure is modified for a new shaft opening with framing supported by a structural steel member. A six-inch by six-inch shim plate of thickness as required provides full bearing under the joist cut for the new opening. A stiffener plate on one side is welded with quarter-inch fillet welds typically. A C23 connection uses two seven-eighths-inch diameter A325 bolts. New shaft openings vary by floor and require coordination with existing framing and architectural and mechanical plans.
PL6x6 SHIM, THICKNESS AS REQ'D FOR FULL BEARING UNDER JOIST CUT FOR NEW OPENING (E) CONC PAN JOIST STRUC STIFF PL, (1) SIDE ONLY, TYP C23 CONN W/ (2) 7/8"ø A325 BOLTS NOTES: 1. NEW SHAFT OPENING BEYOND. CONFIGURATION VARIES BY FLOOR, REFER TO PLAN AND COORDINATE WITH EXISTING FRAMING AND ARCHITECTURAL/MECHANICAL PLANS. TYP 2 2 1/4 1/4 SEE NOTE 1
