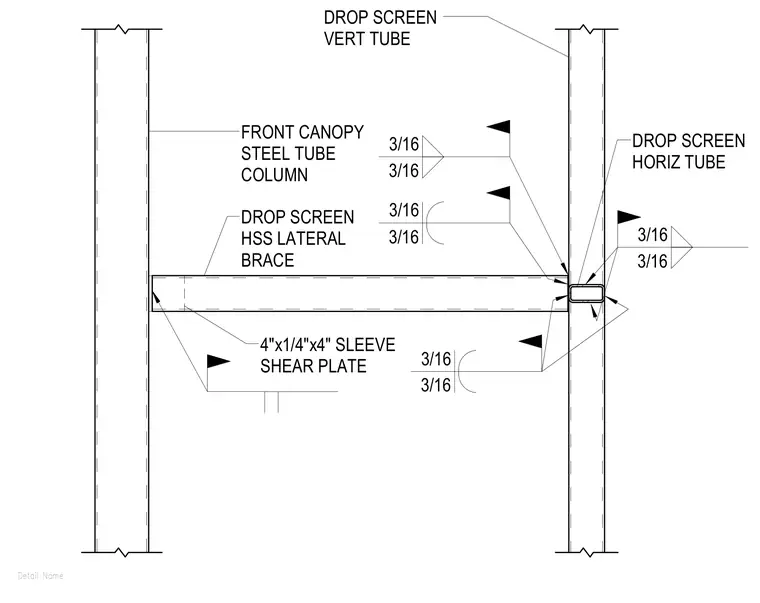

The drop screen hollow structural section lateral brace frames into the front canopy steel tube column using a four-inch by quarter-inch by four-inch sleeve shear plate. Three-sixteenths-inch fillet welds secure the sleeve plate and structural tubing members at all indicated connection points. The drop screen vertical and horizontal tubes frame adjacent to the lateral brace assembly with matching weld sizes.
Detail Name 4"x1/4"x4" SLEEVE SHEAR PLATE 3/16 3/16 3/16 3/16 DROP SCREEN HSS LATERAL BRACE FRONT CANOPY STEEL TUBE COLUMN DROP SCREEN VERT TUBE DROP SCREEN HORIZ TUBE 3/16 3/16 3/16 3/16
