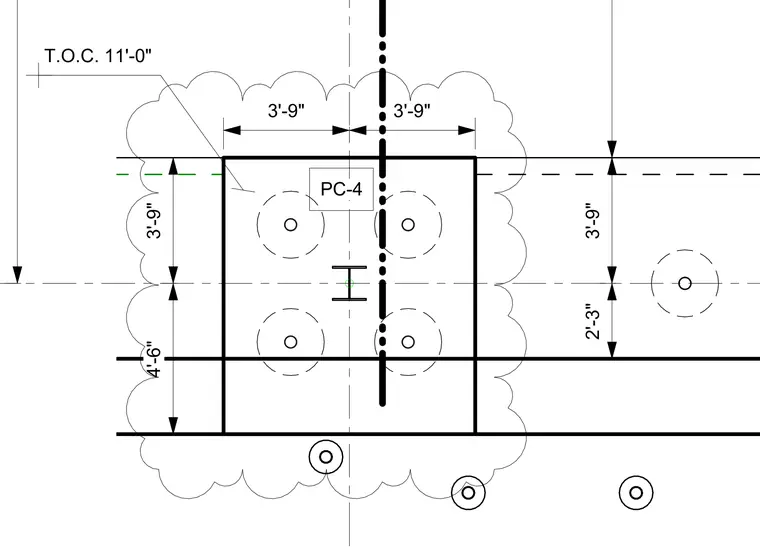

This structural plan detail shows a precast concrete pier designated as PC-4 with a top of concrete elevation of 11 feet 0 inches. The square pier assembly is dimensioned at 3 feet 9 inches by 3 feet 9 inches relative to column centerlines and grid lines. Four anchor bolts are symmetrically arranged within the pier footprint, spaced at 3 feet 9 inches and 2 feet 3 inches. Additional reference dimensions of 4 feet 6 inches establish the offset to adjacent structural grid lines.
3'-9" 2'-3" 3'-9" 3'-9" 3'-9" 4'-6" PC-4 T.O.C. 11'-0"
