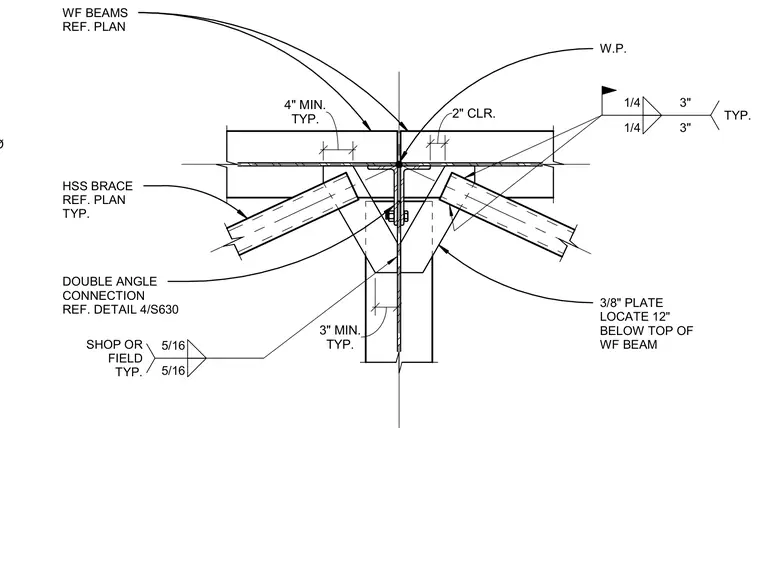

Hollow structural section braces frame into wide flange beams using a double angle connection referenced to another detail. A three-eighths-inch plate is located twelve inches below the top of the wide flange beam, secured with five-sixteenths-inch shop or field welds. An additional plate measuring three-eighths by three inches by zero feet six inches is fastened with two three-quarter-inch-diameter bolts. The hollow structural section braces align at work points with minimum clearances and spacings specified on the drawing.
3/8" PLATE LOCATE 12" BELOW TOP OF WF BEAM TYP. 3" MIN. TYP. 4" MIN. 2" CLR. 5/16 5/16 SHOP OR FIELD TYP. 1/4 3" 1/4 3" TYP. W.P. WF BEAMS REF. PLAN DOUBLE ANGLE CONNECTION REF. DETAIL 4/S630 HSS BRACE REF. PLAN TYP. PL 3/8x3"x0'-6" w/ (2) 3/4"Ø SOLAR RAIL BY OTHERS
