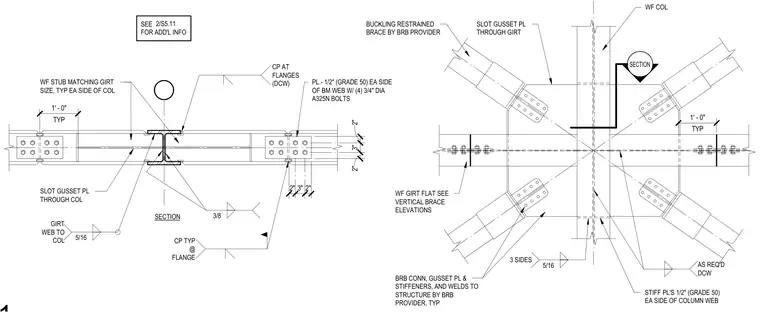

A buckling restrained brace connects to a wide-flange column and girt assembly via a slotted gusset plate passing through the girt and column, flanked by half-inch Grade 50 stiffener plates on each side of the column web. Connection plates are welded at the flanges, and beam webs are secured using four three-quarter-inch diameter A325N bolts. Fillet welds of five-sixteenth-inch and three-eighth-inch sizes are specified throughout the connection assembly.
SECTION WF GIRT FLAT SEE VERTICAL BRACE ELEVATIONS WF COL BUCKLING RESTRAINED BRACE BY BRB PROVIDER STIFF PL'S 1/2" (GRADE 50) EA SIDE OF COLUMN WEB BRB CONN, GUSSET PL & STIFFENERS, AND WELDS TO STRUCTURE BY BRB PROVIDER, TYP SEE FOR ADD'L INFO 2/S5.11 CP TYP @ FLANGE 2" 3" 2" PL.- 1/2" (GRADE 50) EA SIDE OF BM WEB W/ (4) 3/4" DIA A325N BOLTS SECTION SLOT GUSSET PL THROUGH GIRT CP AT FLANGES (DCW) 5/16 GIRT WEB TO COL TYP 1' - 0" TYP 1' - 0" 2" 3" 2" SLOT GUSSET PL THROUGH COL WF STUB MATCHING GIRT SIZE, TYP EA SIDE OF COL 3/8 AS REQ'D DCW 5/16 3 SIDES
