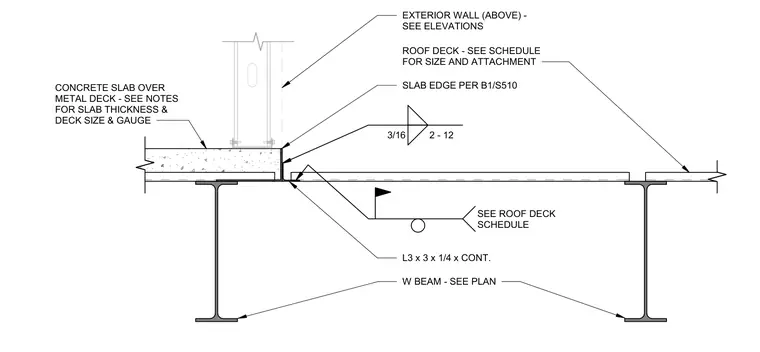

A concrete slab over metal deck bears on a wide-flange steel beam with an exterior wall assembly above. A continuous three-by-three by one-quarter-inch angle is attached at the slab edge with a three-sixteenth-inch fillet weld at twelve inches on center. The adjacent roof deck spans to a parallel wide-flange beam and is sized according to the roof deck schedule.
EXTERIOR WALL (ABOVE) - SEE ELEVATIONS W BEAM - SEE PLAN ROOF DECK - SEE SCHEDULE FOR SIZE AND ATTACHMENT CONCRETE SLAB OVER METAL DECK - SEE NOTES FOR SLAB THICKNESS & DECK SIZE & GAUGE SLAB EDGE PER B1/S510 3/16 2 - 12 SEE ROOF DECK SCHEDULE L3 x 3 x 1/4 x CONT.
