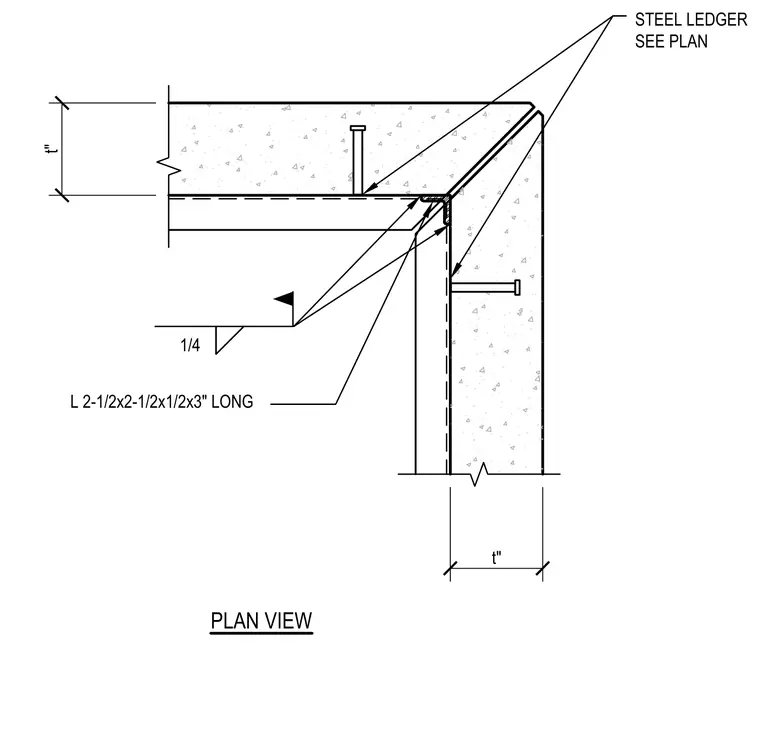

A mitered concrete wall panel corner incorporates a structural steel angle ledger measuring two and one-half by two and one-half by one-half inches by three inches long, sized per plan. The steel ledger is secured to the concrete panels using embedded anchors and a one-quarter-inch fillet weld.
