A continuous steel ledger plate measuring one inch by eight inches by two feet minimum spans across a wall panel joint with a three-quarter-inch by eight-inch by one-foot panel joint plate. The continuous ledger is secured with three-quarter-inch diameter by six-inch embed anchor bolts placed in thirteen-sixteenths-inch by two-inch horizontal slotted holes with double nuts tightened finger tight, positioned with four each side of the ledger and placed at the center of the slotted holes. A three-eighths-inch gusset plate is welded to the assembly with quarter-inch fillet welds. The joist manufacturer designs the joist seat to transfer axial loads from the wall to the joist. For joists at or adjacent columns, two three-quarter-inch diameter A307 erection bolts are provided at the seat through one-inch slotted holes parallel to the joist in the bearing plate, with locations coordinated with the joist manufacturer.

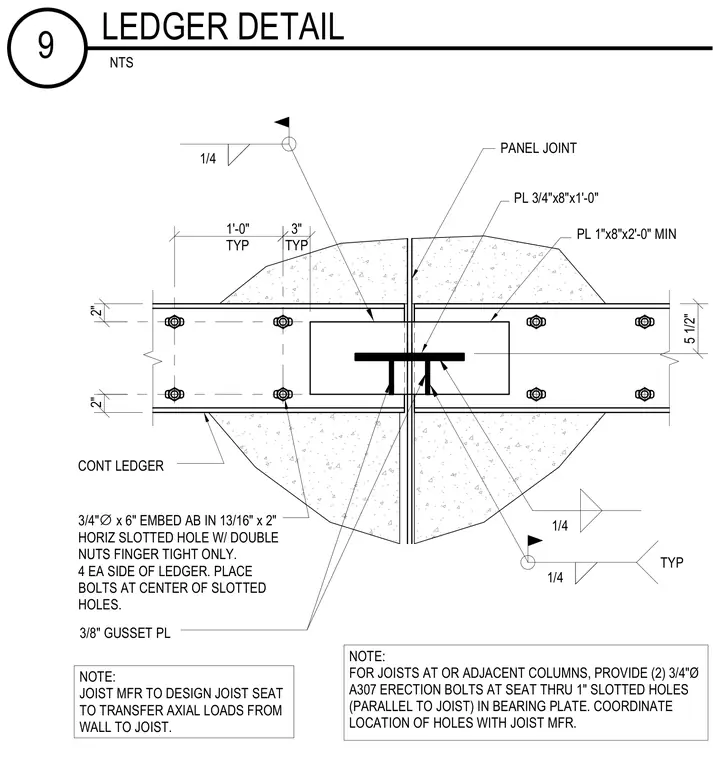

TYP 1'-0" TYP 2" 2" 3" TYP 5 1/2" CONT LEDGER PL 1"x8"x2'-0" MIN PANEL JOINT PL 3/4"x8"x1'-0" 3/4" ∅ x 6" EMBED AB IN 13/16" x 2" HORIZ SLOTTED HOLE W/ DOUBLE NUTS FINGER TIGHT ONLY. 4 EA SIDE OF LEDGER. PLACE BOLTS AT CENTER OF SLOTTED HOLES. 3/8" GUSSET PL NOTE: JOIST MFR TO DESIGN JOIST SEAT TO TRANSFER AXIAL LOADS FROM WALL TO JOIST. NOTE: FOR JOISTS AT OR ADJACENT COLUMNS, PROVIDE (2) 3/4"Ø A307 ERECTION BOLTS AT SEAT THRU 1" SLOTTED HOLES (PARALLEL TO JOIST) IN BEARING PLATE. COORDINATE LOCATION OF HOLES WITH JOIST MFR. 1/4 1/4 1/4 NTS LEDGER DETAIL 9
