Structural · S-353XH

Typical Bridging Detail

Materials

Concrete Steel Timber / Wood Brick Metal (misc.)

Elements

Walls Curtain Walls Facades / Cladding Roofs Decks Arches Bracing Connections / Plates

Connections

Bracing Connection Deck Attachment

About this detail

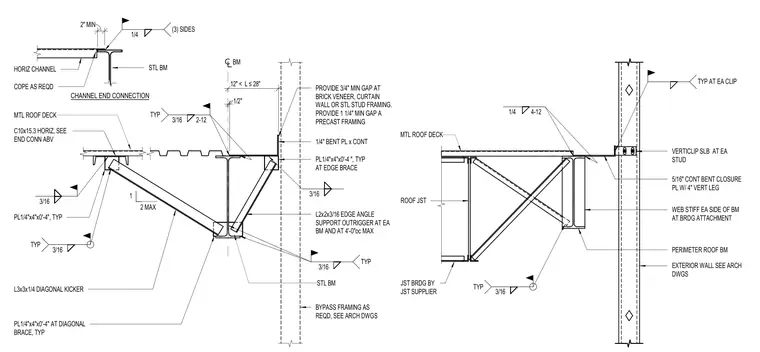

Horizontal channel bridging members (C10x15.3) and diagonal kickers (L3x3x1/4) are welded to structural steel beams using 1/4-inch and 3/16-inch fillet welds with typical connection plates (PL1/4"x4"x0'-4"). Edge angle supports (L2x2x3/16) and continuous bent closure plates accommodate bypass framing and maintain specified clearances of 3/4 inch at brick veneer or curtain walls and 1 1/4 inches at precast framing. Additional details show web stiffeners at beam bridging attachments, joist bridging supplied by the joist manufacturer, and verticlip connections at exterior wall studs.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
