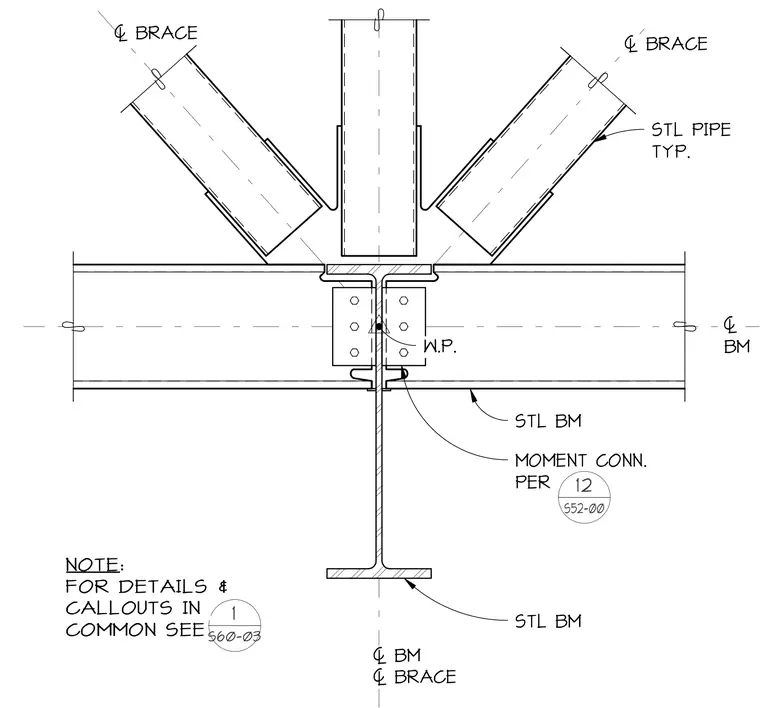

Structural steel pipe braces intersect at a gusset plate welded to the top flange of a horizontal steel beam. The steel pipe braces connect along their respective brace centerlines intersecting at a common working point. A moment connection per detail 12 on sheet S52-00 secures the steel beam assembly. Additional details and common callouts are referenced on sheet S60-03.
7 BRACE 7 BRACE 7 BM 7 BM 7 BRACE W.P. STL BM STL PIPE TYP. STL BM MOMENT CONN. PER 12 S52-00 NOTE: FOR DETAILS & CALLOUTS IN COMMON SEE 1 S60-03
