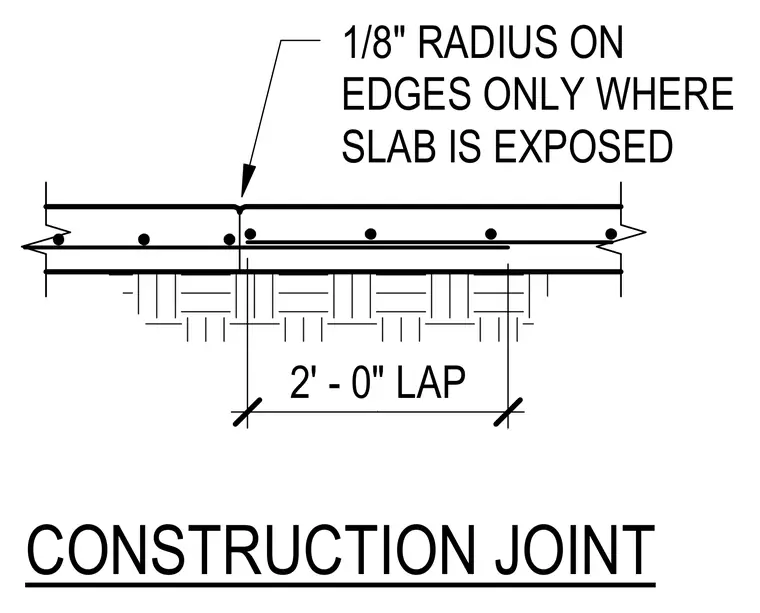

A construction joint in a concrete slab features a two-foot reinforcing bar lap splice across the joint interface. Edges are finished with a one-eighth inch radius only where the concrete slab remains exposed to view.
1/8" RADIUS ON EDGES ONLY WHERE SLAB IS EXPOSED CONSTRUCTION JOINT 24" 2' - 0" LAP
