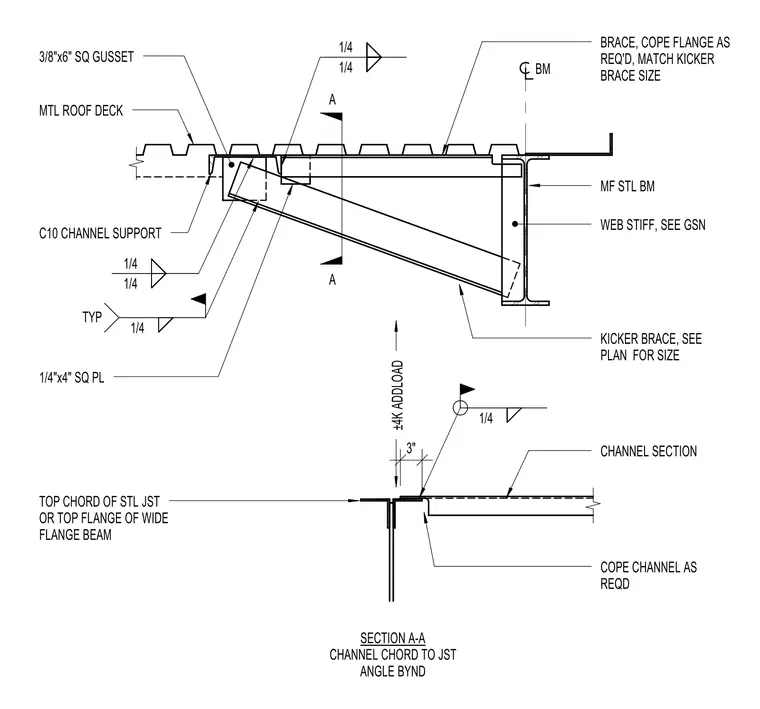

A moment frame beam brace connects to a wide flange steel beam and is supported by a C10 channel. A kicker brace sized per plan extends from a three-eighths-inch by six-inch square gusset plate at the roof deck down to a web stiffener on the main steel beam, with flanges coped as required. A quarter-inch fillet weld secures the assembly typically throughout. Section A-A details the channel chord connection to the top chord of a steel joist or wide flange beam with a three-inch clearance and required coping.
A A MTL ROOF DECK C10 CHANNEL SUPPORT KICKER BRACE, SEE PLAN FOR SIZE MF STL BM WEB STIFF, SEE GSN SECTION A-A CHANNEL CHORD TO JST ANGLE BYND TOP CHORD OF STL JST OR TOP FLANGE OF WIDE FLANGE BEAM CHANNEL SECTION 3" COPE CHANNEL AS REQD 3/8"x6" SQ GUSSET 1/4"x4" SQ PL BM BRACE, COPE FLANGE AS REQ'D, MATCH KICKER BRACE SIZE ±4K ADDLOAD 1/4 1/4 TYP 1/4 1/4 1/4 1/4
