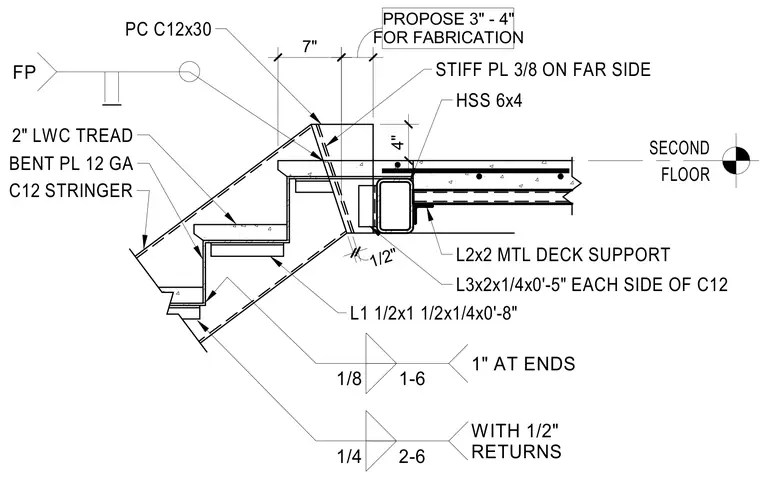

A precast channel stringer of size C12x30 frames into a hollow structural section 6x4 beam at the second floor. A three-eighths-inch stiffener plate is welded on the far side of the connection. Metal deck support angles measuring 3x2x1/4 by zero feet five inches are placed on each side of the channel stringer, accompanied by smaller angles measuring 1-1/2x1-1/2x1/4 by zero feet eight inches. Fillet welds of one-eighth-inch and one-quarter-inch sizes are specified with one-inch ends and one-half-inch returns. The assembly supports twelve-gauge bent plates carrying two-inch lightweight concrete treads.
FLOOR SECOND C12 STRINGER 1/2" 7" FOR FABRICATION PROPOSE 3" - 4" 4" BENT PL 12 GA 2" LWC TREAD FP PC C12x30 STIFF PL 3/8 ON FAR SIDE HSS 6x4 L2x2 MTL DECK SUPPORT L3x2x1/4x0'-5" EACH SIDE OF C12 L1 1/2x1 1/2x1/4x0'-8" 1/8 1-6 1" AT ENDS 1/4 2-6 WITH 1/2" RETURNS
