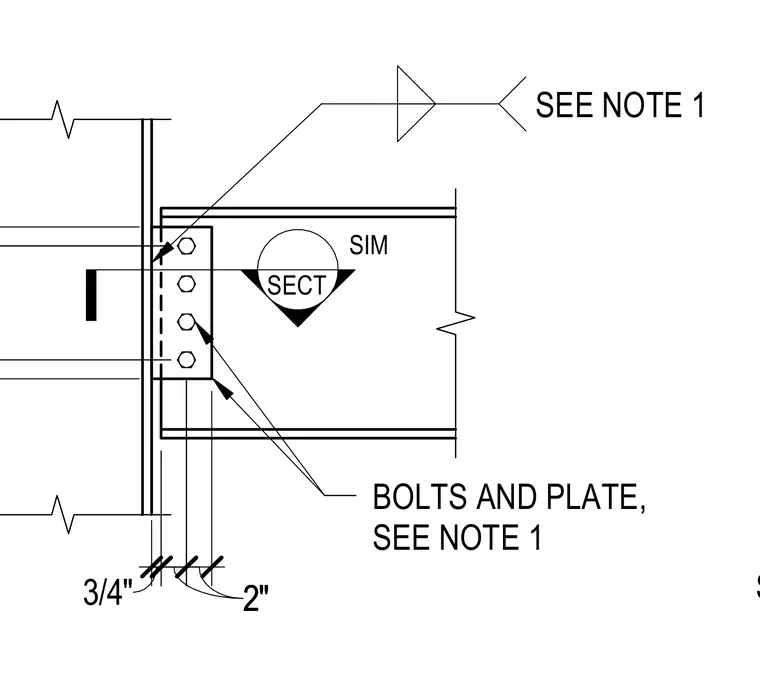

A steel framing connection attaching a structural beam to a column flange using a bolted plate assembly. The connection utilizes three-quarter-inch bolts securing a plate per structural notes, with spacing dimensioned at two inches. Additional reference notes and sectional indicators guide the installation of the similar mirrored condition.
