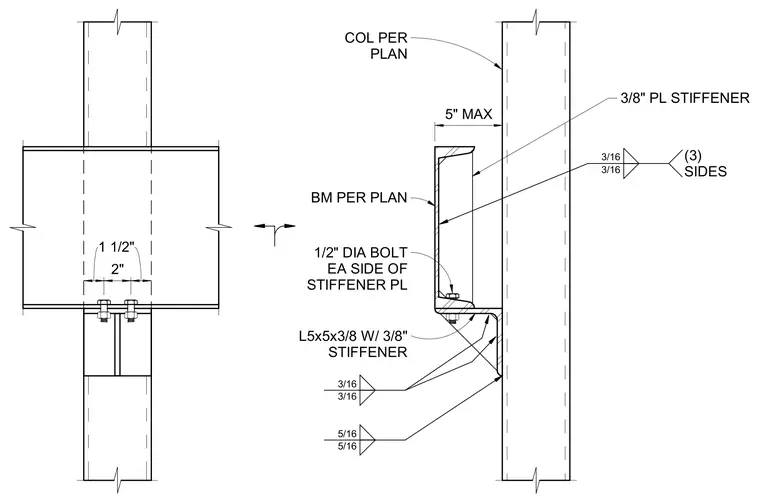

A structural steel beam frames into a column using a five-by-five by three-eighths-inch angle fitted with a three-eighths-inch plate stiffener. Half-inch diameter bolts secure the assembly on each side of the stiffener plate. A three-eighths-inch plate stiffener is welded to the beam web with three-sixteenths-inch fillet welds on three sides. The angle is welded to the column with five-sixteenths-inch fillet welds and to the beam with three-sixteenths-inch fillet welds, maintaining a five-inch maximum spacing.
1/2" DIA BOLT EA SIDE OF STIFFENER PL L5x5x3/8 W/ 3/8" STIFFENER BM PER PLAN COL PER PLAN 3/16 3/16 5/16 5/16 5" MAX 3/8" PL STIFFENER 3/16 3/16 (3) SIDES 1 1/2" 2" 1 1/2"
