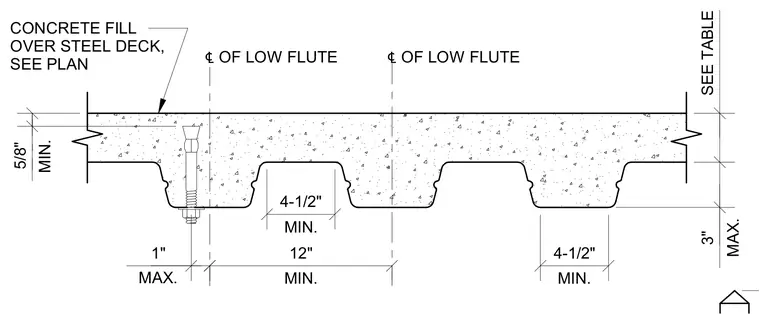

Concrete fill is placed over a profiled steel deck with a minimum thickness of five-eighths inch above the top of the flute and a maximum depth of three inches. The deck flutes maintain a minimum width of four and one-half inches with twelve-inch minimum spacing centerline to centerline. A threaded stud anchor is positioned within one inch maximum from the centerline of the low flute. Overall slab and deck dimensions are sized per table and plan.
CONCRETE FILL OVER STEEL DECK, SEE PLAN ℄ OF LOW FLUTE ℄ OF LOW FLUTE MIN. 12" MIN. 4-1/2" MIN. 4-1/2" 1" MAX. 5/8" MIN. 3" SEE TABLE MAX.
