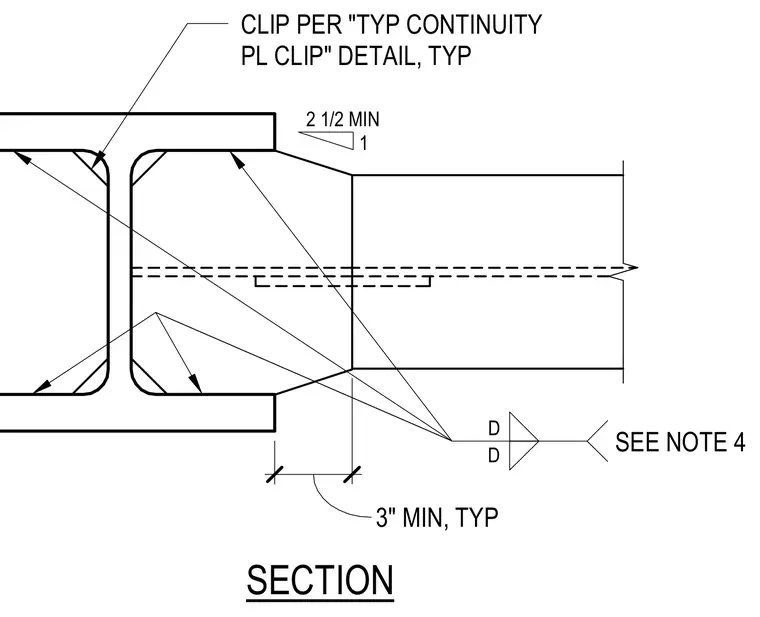

A structural steel connection joins a framing member to a wide-flange column with welded plate transitions and typical flange clips. The intersecting member features a tapered profile with a slope transition and a minimum three-inch dimension typical at the connection zone. Welds are executed according to project specifications and designated notes.
SEE NOTE 4 D D 4" 3" MIN, TYP CLIP PER "TYP CONTINUITY PL CLIP" DETAIL, TYP 2 1/2 MIN 1 SECTION
