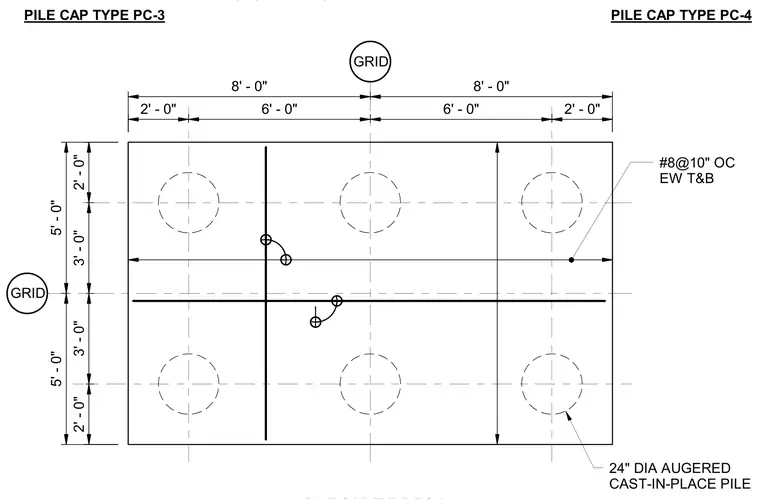

Cast-in-place concrete pile cap type PC-3 is supported by six twenty-four-inch diameter augered cast-in-place piles arranged in a rectangular grid pattern. The pile cap measures sixteen feet long by ten feet wide, with symmetric spacing from the center grid lines. Reinforcement consists of number eight bars at ten inches on center each way top and bottom.
CAST-IN-PLACE PILE PILE CAP TYPE PC-3 PILE CAP TYPE PC-4 24" DIA AUGERED CAST-IN-PLACE PILE 16'-0" 90.00° 10'-0" 90.00° 2' - 0" 6' - 0" 6' - 0" 2' - 0" 2' - 0" 3' - 0" 3' - 0" 2' - 0" 5' - 0" 5' - 0" 8' - 0" 8' - 0" GRID GRID #8@10" OC EW T&B
