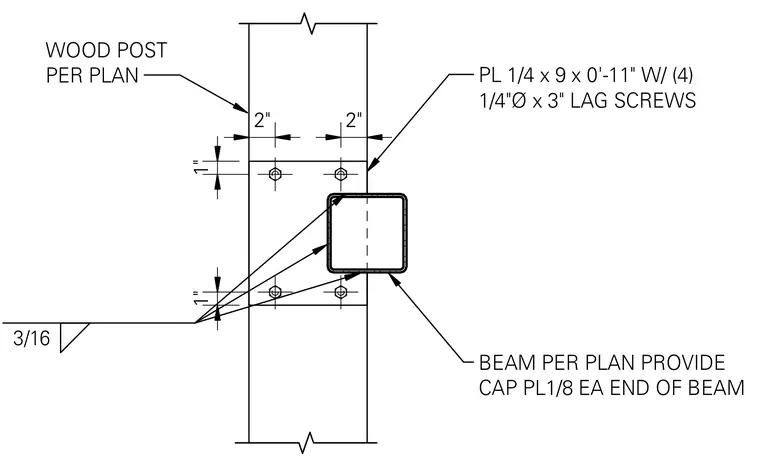

An offset hollow structural section beam connects to a timber post sized per plan using a one-quarter-inch by nine-inch by zero-foot-eleven-inch steel plate secured with four one-quarter-inch diameter by three-inch lag screws. The steel beam is fitted with a one-eighth-inch cap plate at each end and welded to the steel plate with a three-sixteenth-inch fillet weld.
2" 2" 1" 1" WOOD POST PER PLAN PL 1/4 x 9 x 0'-11" W/ (4) 1/4"Ø x 3" LAG SCREWS 3/16 BEAM PER PLAN PROVIDE CAP PL1/8 EA END OF BEAM
