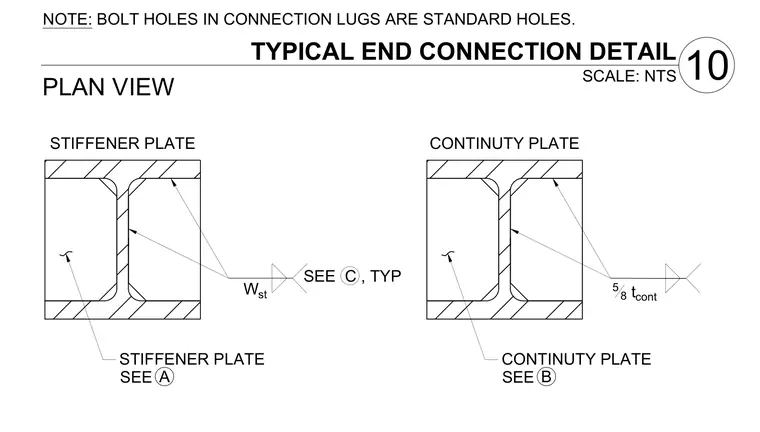

This structural plan view details stiffener and continuity plate configurations for steel member end connections. The drawing shows a stiffener plate welded to the web and flanges with a typical weld size per detail C. A separate continuity plate configuration is detailed with 5/8-inch thickness and standard bolt holes specified for connection lugs.
PLAN VIEW 10 TYPICAL END CONNECTION DETAIL SCALE: NTS NOTE: BOLT HOLES IN CONNECTION LUGS ARE STANDARD HOLES. 5 8 t cont W st SEE C , TYP STIFFENER PLATE A SEE STIFFENER PLATE CONTINUTY PLATE CONTINUTY PLATE B SEE
