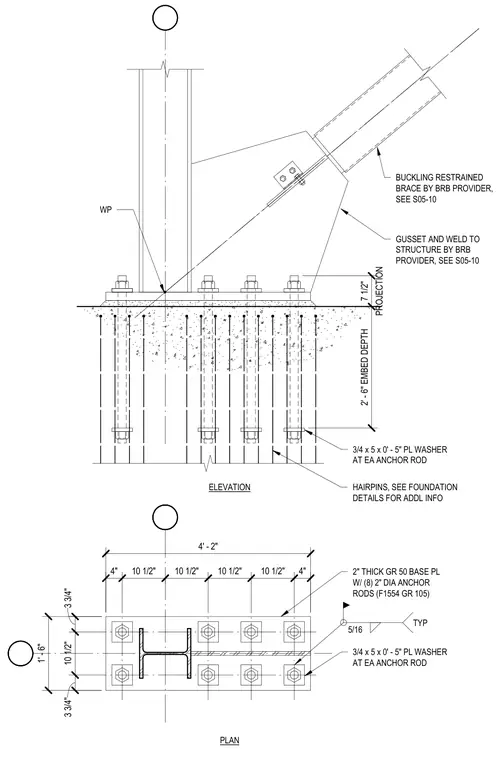

A buckling restrained brace connects to a base plate and gusset assembly anchored to a concrete foundation. The assembly features a two-inch-thick Grade 50 base plate secured by eight two-inch-diameter anchor rods of ASTM F1554 Grade 105 steel, with three-quarter by five by zero-foot-five-inch plate washers at each anchor rod. The anchor rods have a seven-and-a-half-inch projection and a two-foot-six-inch embedment depth, accompanied by hairpins as indicated in foundation details. The gusset and associated welds to the structure are provided by the buckling restrained brace provider.
BUCKLING RESTRAINED BRACE BY BRB PROVIDER, SEE S05-10 WP 1' - 6" 4' - 2" 4" 10 1/2" 10 1/2" 10 1/2" 10 1/2" 4" 3 3/4" 10 1/2" 3 3/4" PLAN ELEVATION GUSSET AND WELD TO STRUCTURE BY BRB PROVIDER, SEE S05-10 2" THICK GR 50 BASE PL W/ (8) 2" DIA ANCHOR RODS (F1554 GR 105) 3/4 x 5 x 0' - 5" PL WASHER AT EA ANCHOR ROD 5/16 TYP 3/4 x 5 x 0' - 5" PL WASHER AT EA ANCHOR ROD PROJECTION 7 1/2" 2' - 6" EMBED DEPTH HAIRPINS, SEE FOUNDATION DETAILS FOR ADDL INFO
