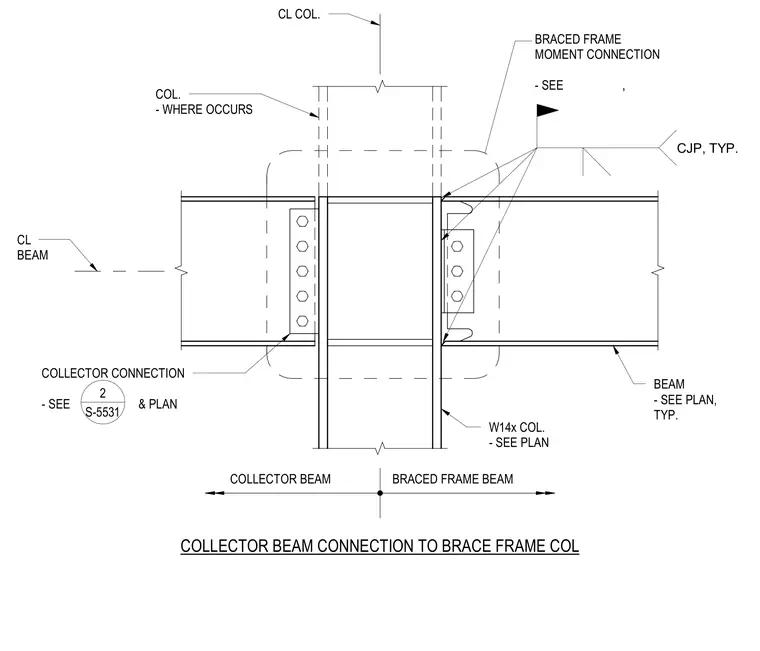

A collector beam and a braced frame beam frame into a W14x column with a moment connection detailed per plan. Complete joint penetration welds are specified typically at the beam to column flanges. Bolted connections utilize plates matching the configuration sized per plan. Additional collector connections are detailed elsewhere on the structural drawings.
W14x COL. - SEE PLAN BRACED FRAME MOMENT CONNECTION - SEE , BEAM - SEE PLAN, TYP. CL BEAM CJP, TYP. CL COL. COL. - WHERE OCCURS COLLECTOR CONNECTION - SEE & PLAN 2 S-5531 COLLECTOR BEAM BRACED FRAME BEAM COLLECTOR BEAM CONNECTION TO BRACE FRAME COL
