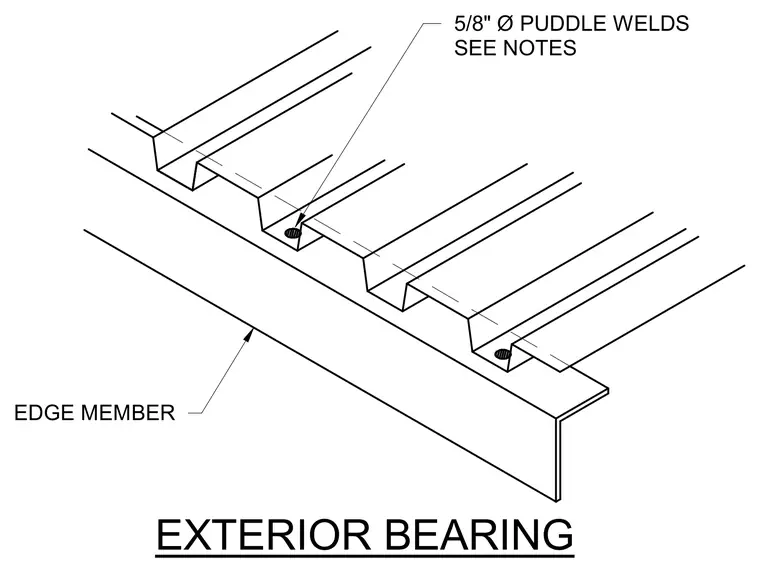

Metal deck bears directly on a structural edge member and is secured with five-eighths inch diameter puddle welds spaced per notes. The fluted deck profile aligns continuously across the exterior support.
