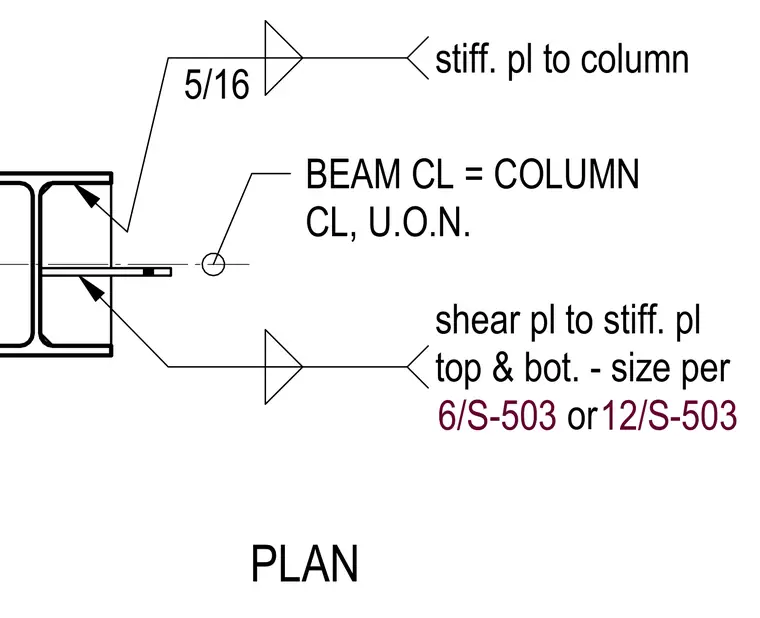

A structural steel connection plan details a shear plate welded to a stiffener plate at the column centerline unless otherwise noted. The stiffener plate is secured to the column with a five-sixteenths inch fillet weld. The shear plate to stiffener plate connection top and bottom is sized per sheet 6/S-503 or 12/S-503.
PLAN BEAM CL = COLUMN CL, U.O.N. 5/16 stiff. pl to column shear pl to stiff. pl top & bot. - size per or 6/S-503 12/S-503
