Structural · S-32NYS

Holes In The Beam Are Prohibited Within The L

Materials

Steel

Elements

Columns Beams Bracing Connections / Plates

Connections

Moment Connection Braced Frame Connection Gusset Plate Bracing Connection Welded Connection

About this detail

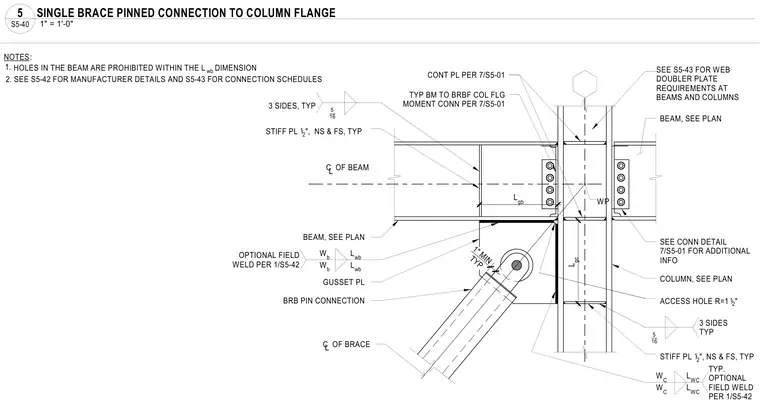

A single brace pinned connection frames into a structural steel column flange using a gusset plate welded to the column and beam. One-half-inch stiffener plates are welded to the near side and far side typically with five-sixteenth-inch fillet welds on three sides. A continuous plate per detail 7/S5-01 is provided at the beam-to-column flange moment connection. A pin connection accommodates the brace, maintaining a one-inch minimum typical clearance from the work point. Access holes with a one-and-one-half-inch radius are provided at the column web intersections. Holes in the beam are prohibited within the specified length dimension.
