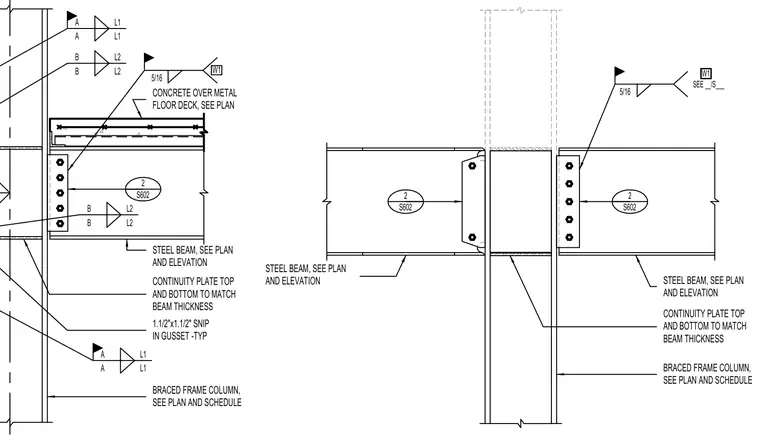

Steel beams connect to a braced frame column using bolted shear tabs and top and bottom continuity plates matched to the beam thickness. A gusset plate with a typical one and one-half inch by one and one-half inch snip is welded to the framing members using five-sixteenths inch fillet welds. Concrete over metal floor deck frames into the assembly at the upper beam level. The column and beam sizes are sized per plan and schedule.
BRACED FRAME COLUMN, SEE PLAN AND SCHEDULE A A B B A A B B CONCRETE OVER METAL FLOOR DECK, SEE PLAN STEEL BEAM, SEE PLAN CONTINUITY PLATE TOP AND BOTTOM TO MATCH BEAM THICKNESS AND ELEVATION 5/16 L2 L2 L2 L2 1.1/2"x1.1/2" SNIP IN GUSSET -TYP L1 L1 L1 L1 W1 2 S602 STEEL BEAM, SEE PLAN CONTINUITY PLATE TOP AND BOTTOM TO MATCH BEAM THICKNESS SEE __/S___ 5/16 W1 AND ELEVATION STEEL BEAM, SEE PLAN AND ELEVATION BRACED FRAME COLUMN, SEE PLAN AND SCHEDULE 2 S602 2 S602
