Structural · S-32ENJ

Typical Deck Bearing Angles at Columns

Materials

Elements

About this detail

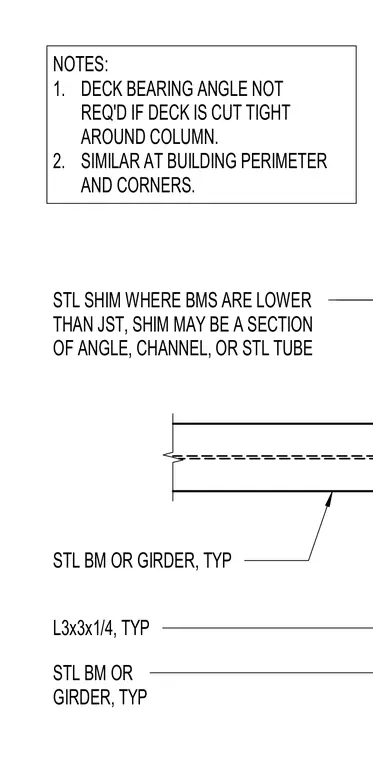

Typical deck bearing angles at columns use a L3x3x1/4 typical angle connected to a steel beam or girder. A steel shim is provided where beams are lower than the joist, and the shim may consist of a section of angle, channel, or steel tube. The deck bearing angle is not required if the deck is cut tight around the column. This assembly is similar at the building perimeter and corners.
