Structural · S-32CPM

Bolted Beam to Column Braced Frame Connection

Elements

Connections

Braced Frame Connection Welded Connection Bolted Connection

About this detail

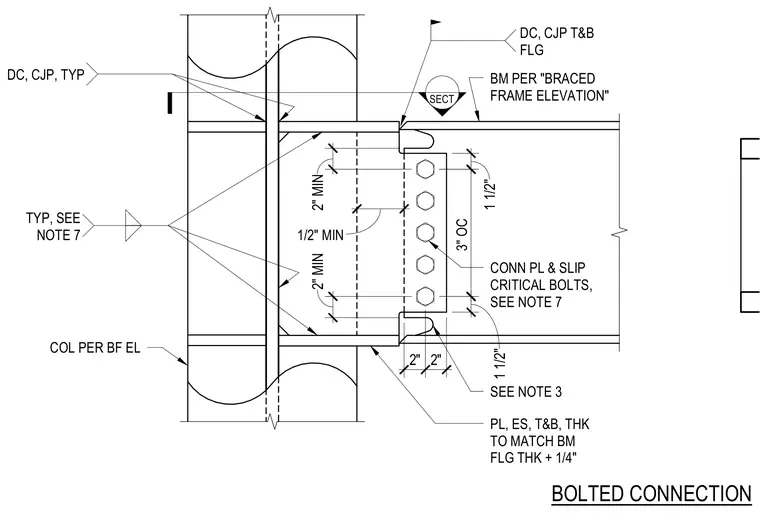

A steel beam connects to a column per the braced frame elevation using top and bottom flange connection plates. The connection plate thickness matches the beam flange thickness plus one-quarter inch. Slip-critical bolts fasten the connection plate at a three-inch on-center spacing with specified edge distances and clearances. Complete joint penetration welds tie the top and bottom flanges with direct-connection details.
