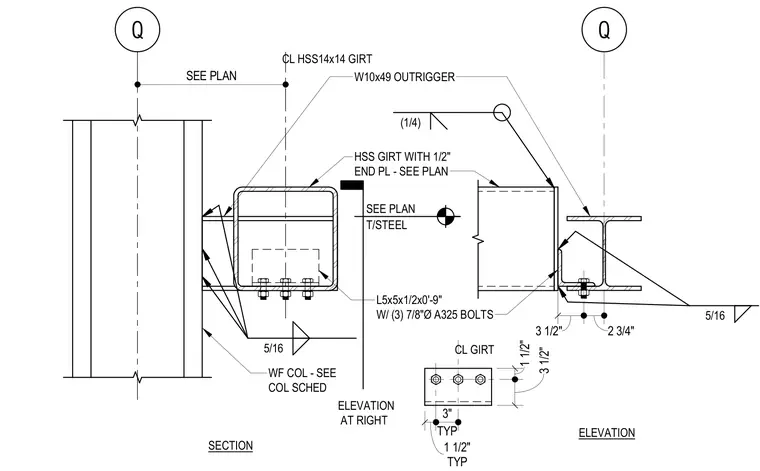

An HSS14x14 girt frames into a wide-flange column using a W10x49 outrigger beam. The girt features a one-half-inch end plate sized per plan and connects with an L5x5x1/2 by zero-foot-nine-inch angle fastened with three seven-eighths-inch-diameter A325 bolts. Fillet welds of five-sixteenth-inch size secure the structural steel components at the column and outrigger junctions. A partial detail shows plan and elevation views with standard centrelines and dimensional spacing.
Q SEE PLAN CL HSS14x14 GIRT SECTION 5/16 ELEVATION 1 1/2" 3 1/2" HSS GIRT WITH 1/2" END PL - SEE PLAN WF COL - SEE COL SCHED L5x5x1/2x0'-9" W/ (3) 7/8"Ø A325 BOLTS W10x49 OUTRIGGER 5/16 ELEVATION AT RIGHT T/STEEL SEE PLAN 3 1/2" 2 3/4" CL GIRT TYP 1 1/2" TYP 3" (1/4) Q
