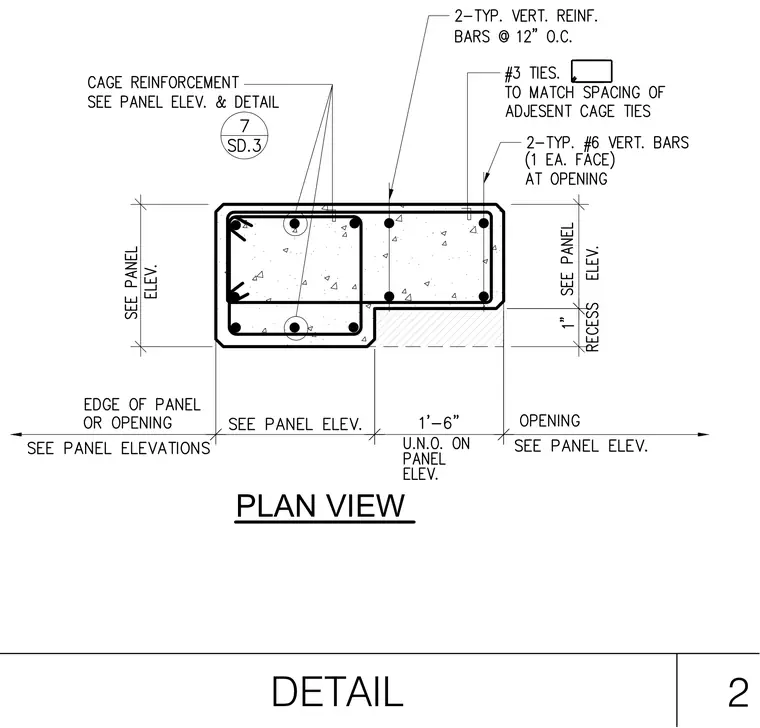

This structural plan detail shows a reinforced concrete wall panel section adjacent to an opening with a one-inch recess. The assembly features two typical vertical reinforcing bars spaced at twelve inches on center, supplemented by number three ties matching adjacent cage spacing. Two typical number six vertical bars, one on each face, are placed at the opening. Cage reinforcement is specified per the panel elevation and detail, with overall dimensions provided on the panel elevations.
