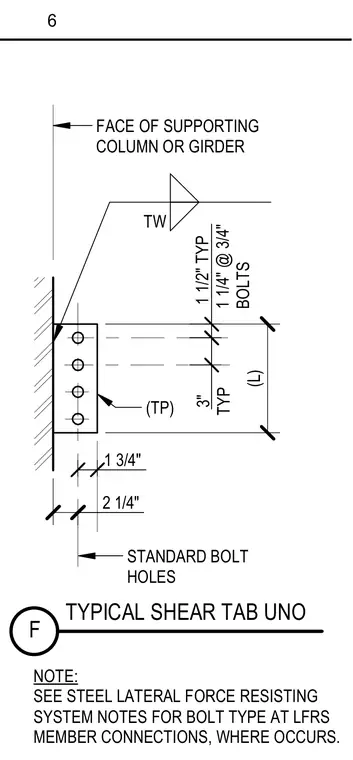

A single-plate shear tab is welded to the face of a supporting column or girder with a weld size designated as TW. The supported beam web connects to the shear tab using standard bolt holes spaced at three inches typical, with a one-and-a-quarter-inch edge distance for three-quarter-inch bolts. Edge dimensions of one-and-three-quarters inches and two-and-a-quarter inches locate the bolt pattern vertically relative to the support face. The detail includes general provisions for lateral force resisting system member connections where applicable.
FACE OF SUPPORTING COLUMN OR GIRDER NOTE: SEE STEEL LATERAL FORCE RESISTING SYSTEM NOTES FOR BOLT TYPE AT LFRS MEMBER CONNECTIONS, WHERE OCCURS. TYPICAL SHEAR TAB UNO F STANDARD BOLT HOLES (TP) 1 1/2" TYP 1 1/4" @ 3/4" BOLTS 3" TYP (L) 1 3/4" 2 1/4" TW 6
