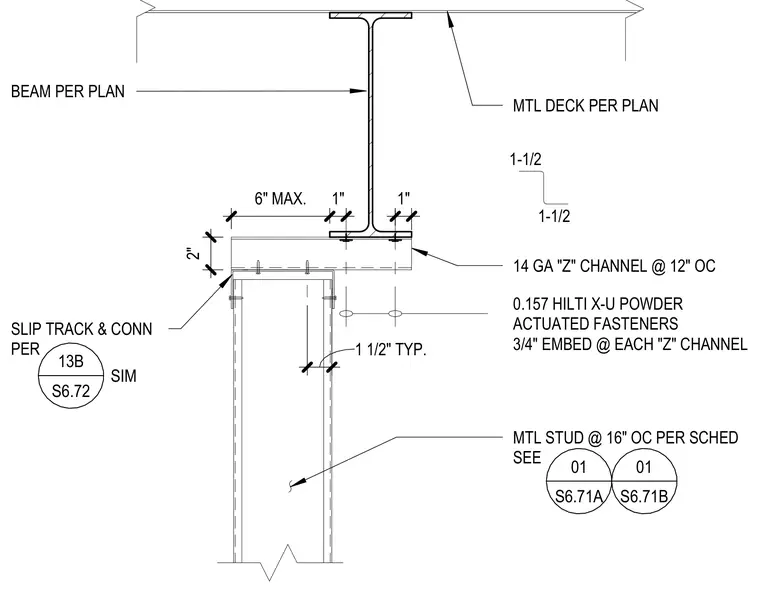

A fourteen-gauge Z-channel spaced at twelve inches on center is fastened to the underside of the structural steel beam flange. Metal studs spaced at sixteen inches on center connect to a slip track bearing against the Z-channel assembly. Powder-actuated fasteners with a three-quarter-inch embedment secure each Z-channel.
MTL DECK PER PLAN BEAM PER PLAN SLIP TRACK & CONN PER MTL STUD @ 16" OC PER SCHED SEE 0.157 HILTI X-U POWDER ACTUATED FASTENERS 3/4" EMBED @ EACH "Z" CHANNEL 14 GA "Z" CHANNEL @ 12" OC 1-1/2 1-1/2 2" 1" 1 1/2" TYP. 6" MAX. 1" 13B S6.72 SIM 01 S6.71A 01 S6.71B
