Stud rails are arranged symmetrically around the concrete column with two equal spaces in each direction. The ends of the stud rails terminate flush in line with the column faces unless noted otherwise. Typical dimensions establish the spacing from the column face outward.

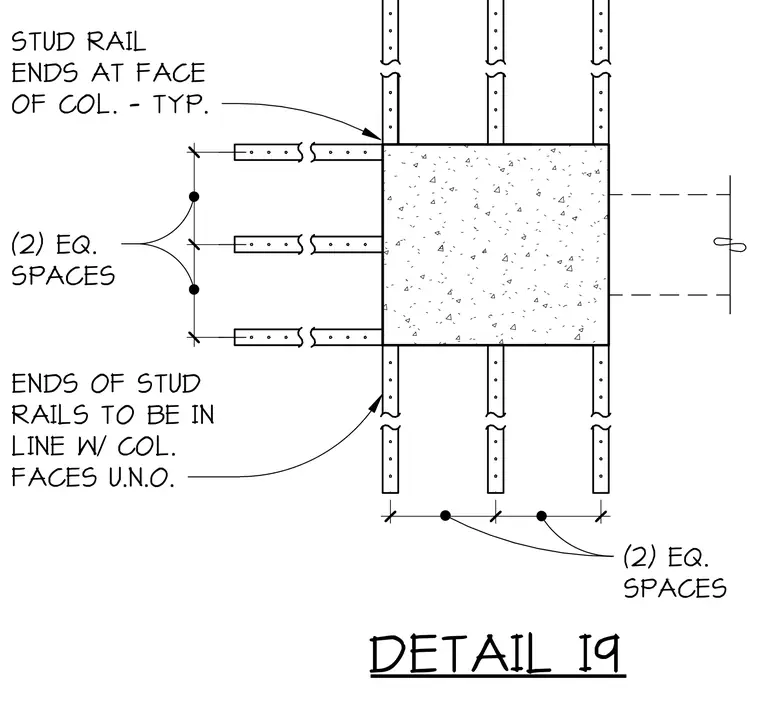

DETAIL I9 STUD RAIL ENDS AT FACE OF COL. - TYP. ENDS OF STUD RAILS TO BE IN LINE W/ COL. FACES U.N.O. 7 3 /8 " 7 3 /8 " (2) EQ. SPACES (2) EQ. SPACES 8 3/ 8 " 8 3/ 8 "
