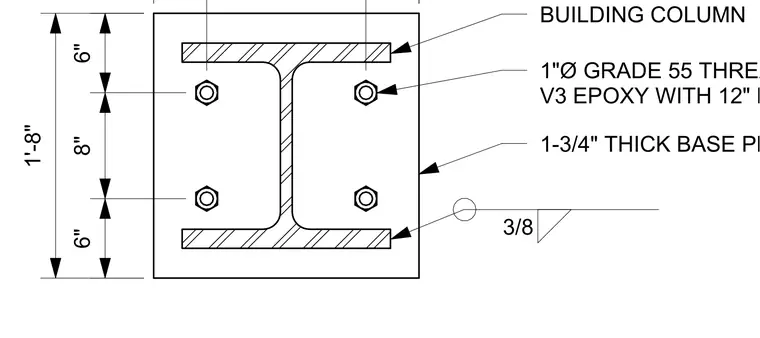

The building column connects to a one-and-three-quarter-inch thick base plate with a three-eighths-inch fillet weld around the column flanges. Four one-inch diameter Grade 55 threaded rods secure the base plate using Hilti HIT-HY 200 V3 epoxy with twelve inches of embedment. The square base plate measures one foot eight inches on each side with symmetrical anchor rod spacing.
1'-8" 1"Ø GRADE 55 THREADED ROD SET IN HILTI HIT-HY 200 V3 EPOXY WITH 12" EMBEDMENT (TYP. AT 4 LOCATIONS) BUILDING COLUMN 1-3/4" THICK BASE PLATE 3/8 6" 8" 6"
