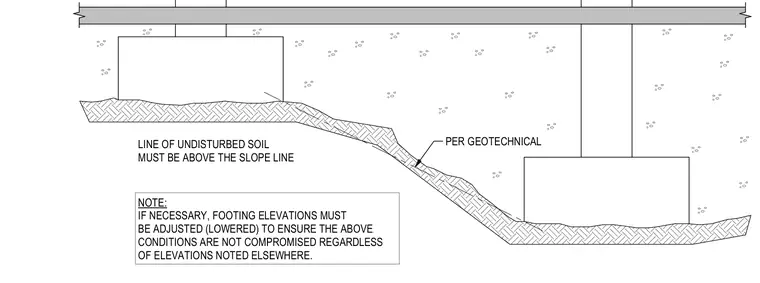

A concrete footing is positioned adjacent to an excavation slope requiring the line of undisturbed soil to remain above the slope line per geotechnical specifications. Footing elevations must be lowered if necessary to maintain these soil conditions regardless of elevations noted elsewhere on the drawings.
LINE OF UNDISTURBED SOIL MUST BE ABOVE THE SLOPE LINE NOTE: IF NECESSARY, FOOTING ELEVATIONS MUST BE ADJUSTED (LOWERED) TO ENSURE THE ABOVE CONDITIONS ARE NOT COMPROMISED REGARDLESS OF ELEVATIONS NOTED ELSEWHERE. PER GEOTECHNICAL
