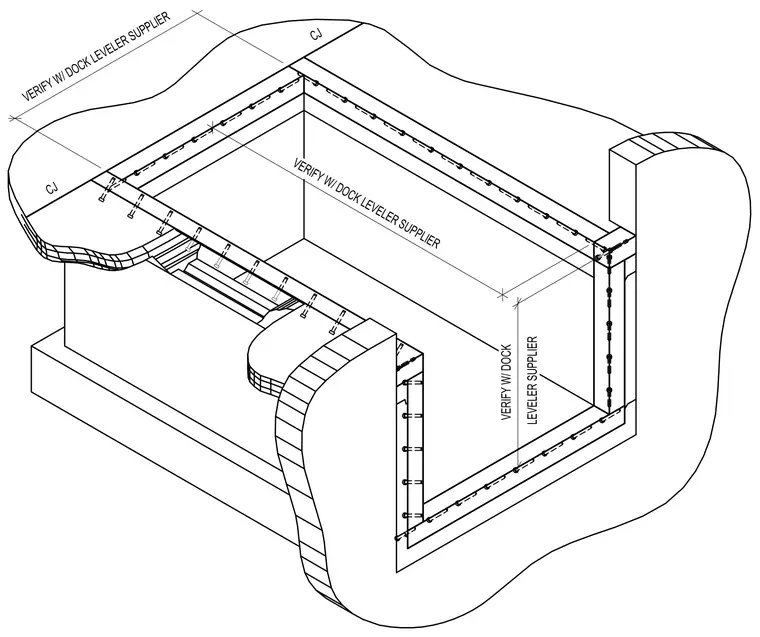

A concrete loading dock pit recesses into a slab-on-grade floor assembly in isometric view. Control joints occur in the surrounding slab, with dimensions and clearances to be verified with the dock leveler supplier.
CJ CJ VERIFY W/ DOCK LEVELER SUPPLIER VERIFY W/ DOCK LEVELER SUPPLIER VERIFY W/ DOCK LEVELER SUPPLIER
