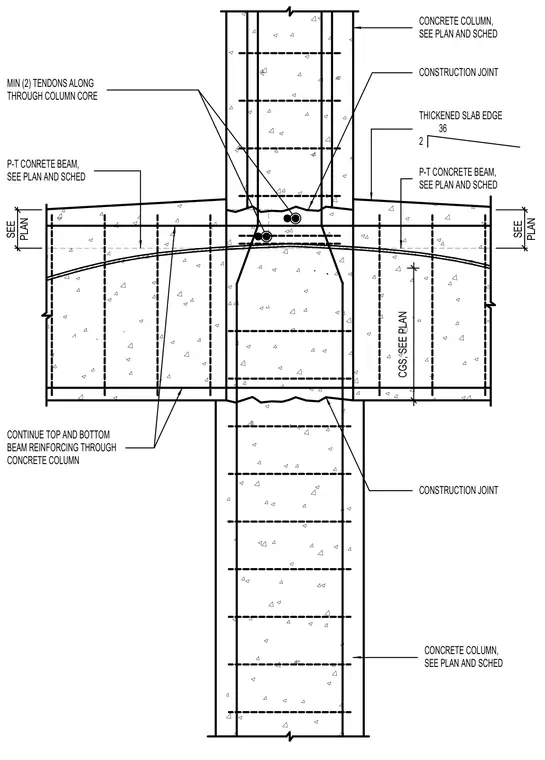

Post-tensioned concrete beams frame continuously through a reinforced concrete column with sizing and reinforcement governed per plan and schedule. Top and bottom beam reinforcing bars continue directly through the concrete column core. A minimum of two post-tensioning tendons run along through the column core with center of gravity of steel positioned per plan. Construction joints are located at the top and bottom of the column connection, adjacent to a thickened slab edge.
CONSTRUCTION JOINT CONSTRUCTION JOINT CONCRETE COLUMN, SEE PLAN AND SCHED MIN (2) TENDONS ALONG THROUGH COLUMN CORE CONTINUE TOP AND BOTTOM BEAM REINFORCING THROUGH CONCRETE COLUMN P-T CONCRETE BEAM, SEE PLAN AND SCHED P-T CONRETE BEAM, SEE PLAN AND SCHED CONCRETE COLUMN, SEE PLAN AND SCHED THICKENED SLAB EDGE 36 2 CGS, SEE PLAN SEE PLAN SEE PLAN
