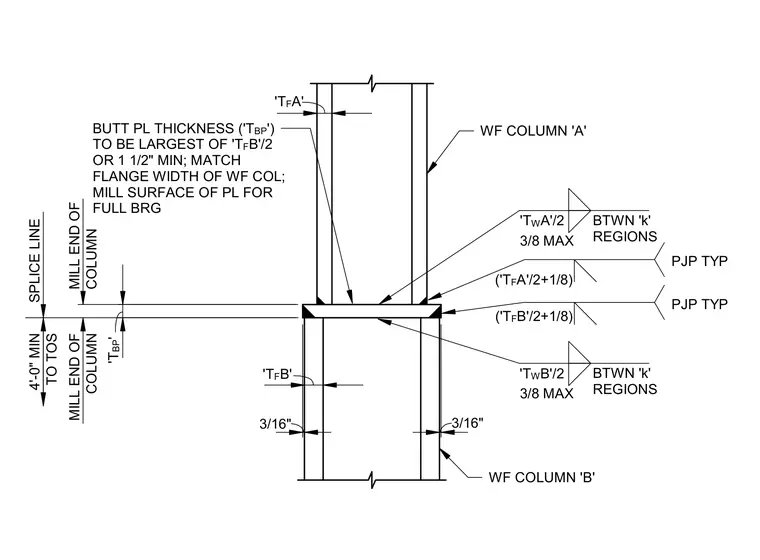

A wide-flange column transition splice connection joins upper wide-flange column A to lower wide-flange column B using a horizontal transitional butt plate. The butt plate thickness is sized to be the largest of half the lower flange thickness or one and a half inches minimum, matching the flange width of the wide-flange column. The plate surface is milled for full bearing with partial-joint-penetration welds typically specified between k-regions. Both column ends are milled square, and the splice line is positioned four feet minimum above the top of steel.
WF COLUMN 'A' WF COLUMN 'B' BUTT PL THICKNESS ('T BP ') TO BE LARGEST OF 'T F B'/2 OR 1 1/2" MIN; MATCH FLANGE WIDTH OF WF COL; MILL SURFACE OF PL FOR FULL BRG ('T F B'/2+1/8) ('T F A'/2+1/8) 'T F B' 'T F A' 'T W A'/2 3/8 MAX 'T BP ' . . 3/16" 3/16" . 'T W B'/2 3/8 MAX BTWN 'k' REGIONS BTWN 'k' REGIONS PJP TYP PJP TYP SPLICE LINE MILL END OF COLUMN 4'-0" MIN TO TOS MILL END OF COLUMN
