Structural · S-2YF52

Typical Auger Cast Concrete Pile Details

Materials

Concrete Reinforced Concrete Steel

Elements

Foundations / Footings Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

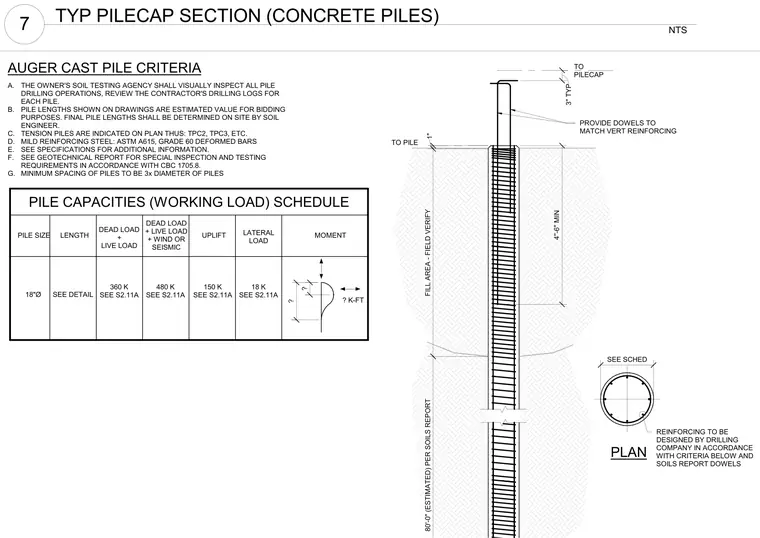

A typical auger cast concrete pile and its connection to the pilecap. The assembly features an eighteen-inch diameter cast-in-place concrete pile reinforced with steel bars and dowels designed to match the vertical reinforcing. The pilecap connection incorporates dowels extending into the concrete pile with a three-inch typical clearance. An auger cast pile criteria list outlines inspection requirements, estimated pile lengths of eighty feet per the soils report, and ASTM A615 Grade 60 deformed mild reinforcing steel. A pile capacities working load schedule details dead load, dead load plus live load, dead load plus live load with wind or seismic, uplift, lateral load, and moment capacities.
