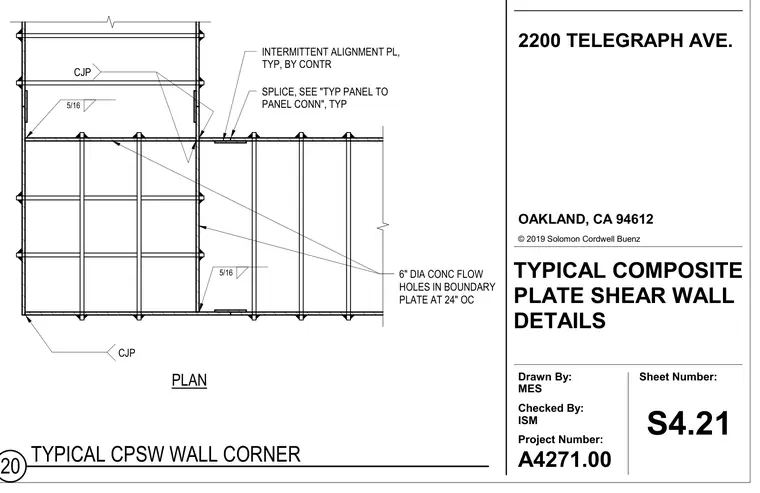

A typical composite plate shear wall corner connection with boundary elements and connecting plates. The assembly utilizes complete joint penetration welds and intermittent alignment plates provided by the contractor. Six-inch diameter concrete flow holes are detailed in the boundary plate at twenty-four inches on center.
SPLICE, SEE "TYP PANEL TO PANEL CONN", TYP CJP INTERMITTENT ALIGNMENT PL, TYP, BY CONTR PLAN CJP 5/16 5/16 6" DIA CONC FLOW HOLES IN BOUNDARY PLATE AT 24" OC Drawn By: Checked By: Project Number: Sheet Number: © 2019 Solomon Cordwell Buenz TYPICAL COMPOSITE PLATE SHEAR WALL DETAILS OAKLAND, CA 94612 2200 TELEGRAPH AVE. S4.21 MES ISM A4271.00 20 TYPICAL CPSW WALL CORNER
