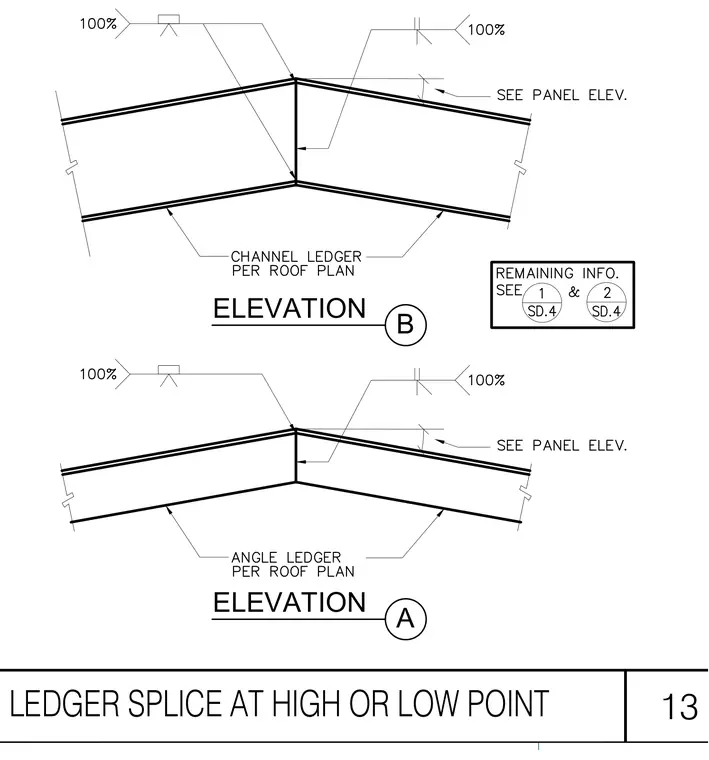

Channel and angle ledger splices at roof high or low points feature a one hundred percent weld configuration at the peak junction. The channel ledger and angle ledger are installed per the roof plan with reference to panel elevations for remaining installation information.
