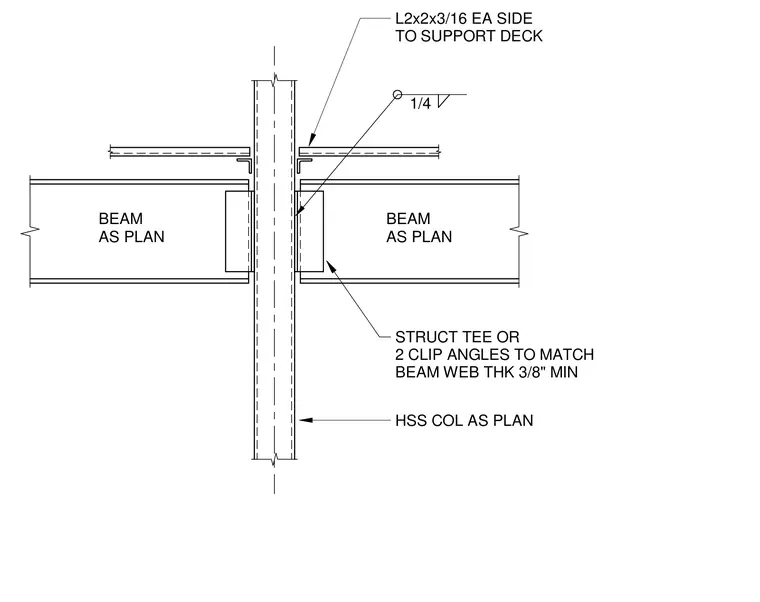

Steel floor beams frame into a hollow structural section column using either a structural tee or two clip angles sized to match the beam web thickness with a three-eighths inch minimum. A two-by-two-by-three-sixteenths angle is provided on each side to support the deck. A one-quarter inch fillet weld secures the connection elements.
1/4 L2x2x3/16 EA SIDE TO SUPPORT DECK STRUCT TEE OR 2 CLIP ANGLES TO MATCH BEAM WEB THK 3/8" MIN HSS COL AS PLAN BEAM AS PLAN BEAM AS PLAN
