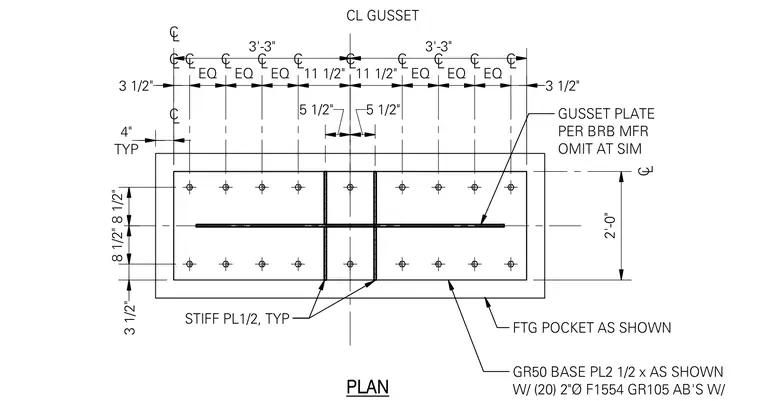

A Grade 50 base plate measuring two and one-half inches thick sits within a foundation pocket and anchors via twenty two-inch diameter ASTM F1554 Grade 105 anchor bolts. One-half-inch thick stiffener plates are welded to the base plate as detailed. A gusset plate specified per the buckling-restrained brace manufacturer aligns with the centerlines and is omitted at similar conditions.
C L 2'-0" GUSSET PLATE PER BRB MFR OMIT AT SIM GR50 BASE PL2 1/2 x AS SHOWN W/ (20) 2"Ø F1554 GR105 AB'S W/ STIFF PL1/2, TYP CL GUSSET C L 3'-3" 3'-3" C L C L C L C L C L C L C L C L C L C L 3 1/2" EQ EQ EQ 11 1/2" 11 1/2" EQ EQ EQ 3 1/2" 5 1/2" 5 1/2" 3 1/2" 8 1/2" 8 1/2" FTG POCKET AS SHOWN PLAN C L TYP 4"
